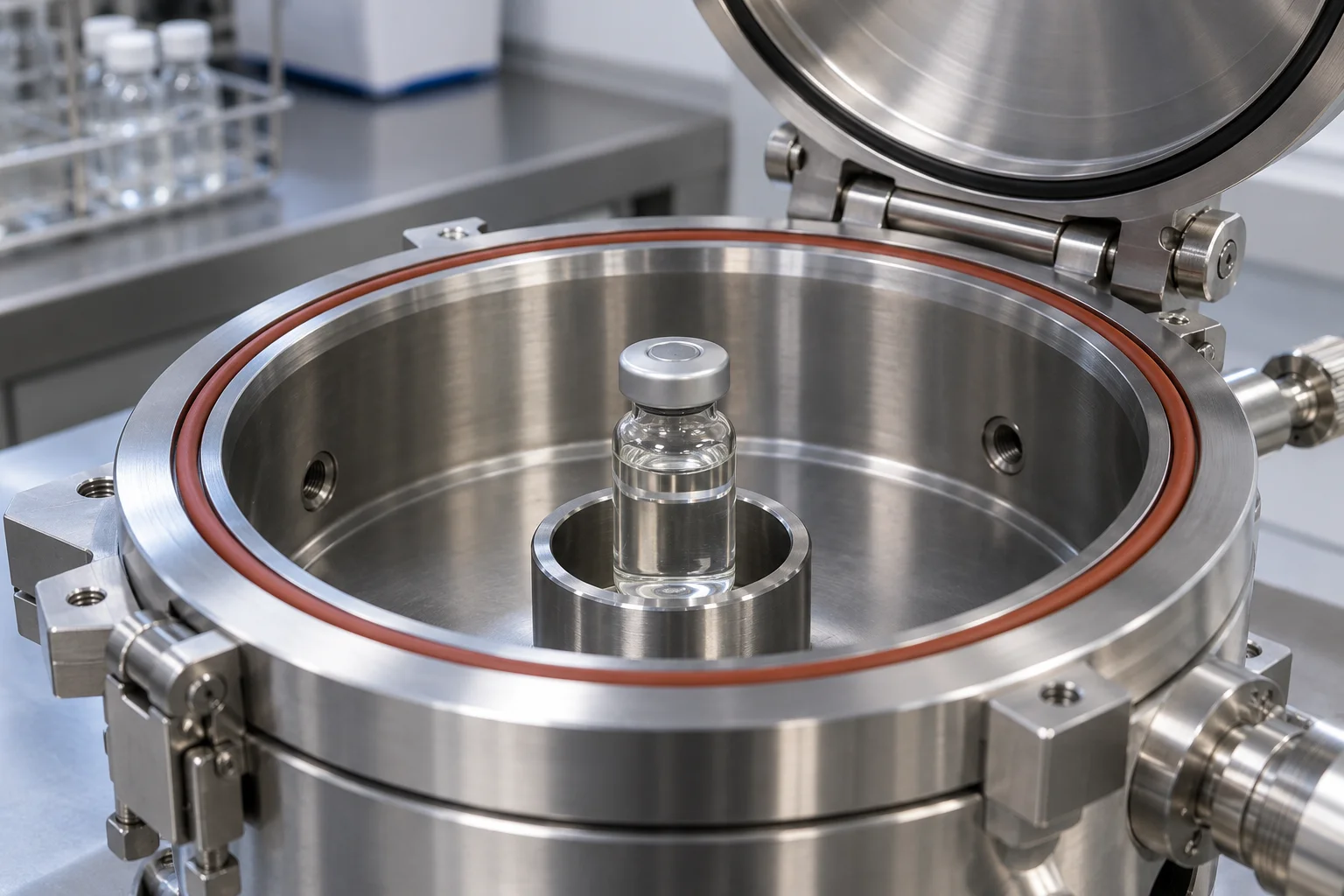

Vacuum decay leak testing detects package leaks by measuring pressure rise in an evacuated chamber containing the package.
Vacuum decay is a deterministic, non-destructive method used in container closure integrity testing (CCIT).
Use this guide to compare the test outputs, examine bottle and blister applications, and organize validation questions within your pharmaceutical packaging work.
Compare the test outputs
| Decision point | Vacuum decay | Dye penetration |
|---|---|---|
| What does the result establish? | Vacuum-decay test results are qualitative accept/reject decisions. | The ASTM dye-penetration procedures discussed here are go/no-go tests and do not quantify leak size. |
| What happens to the sample? | Vacuum decay permits non-destructive detection of leaks that are not visibly detectable. | No package or component test samples exposed to these dye-penetration tests may be used for final product packaging. |
| What supports interpretation? | Acceptance criteria compare non-leaking controls, leaking packages, and simulated leaks introduced with a calibrated gas flow meter. | These dye-penetration procedures can verify and locate leakage sites. |
Follow the pressure signal
Vacuum loss results from escaping package headspace gases and/or volatilization of liquid contents at or near the leak.
The vacuum-decay method does not require introducing extraneous materials such as dyes or gases.
In Bonfiglioli’s vacuum-decay description, pressure readings are separated by a time interval after pressure stabilization.
MET identifies evacuation time and pressure, stabilization time, and test time as process-development parameters.
PTI describes test sensitivity as a function of package design, the test fixture, and the critical parameters of time and pressure.
Liquid at the leak path
When testing leaks that may be partially or completely plugged with package liquid, the chamber is evacuated below the liquid’s vaporization pressure.
Vacuum conditions may trigger some liquid formulations to solidify inside leak paths.
Defect clogging can produce false-negative test results.
Include the formulation and the intended test conditions in your evaluation.
Put USP guidance in context
USP 〈1207〉 is titled Package Integrity Evaluation—Sterile Products.
The chapter provides integrity-assurance guidance for nonporous packages intended for sterile pharmaceutical products.
Package Integrity Leak Test Technologies is the title of 〈1207.2〉.
Package Seal Quality Test Technologies is the title of 〈1207.3〉.
Validation of particular methods should be specific to the product container-closure system or product type.
Container-closure integrity tests do not replace product sterility testing before release.
Read dye-ingress limits by test geometry
The dye-penetration standard examined here is ASTM F3039-23.
Method A detects and locates leaks equal to or greater than a channel formed by a 50 µm wire in nonporous package edge seals.
Method B detects and locates leaks equal to or greater than 10 µm diameter in a nonporous flat sheet.
These dye test methods apply to transparent and opaque nonporous surfaces.
The dye penetrant requires good contrast with the tested material and/or the absorbent surface.
Keep the method, specimen geometry and detection claim together when comparing a dye-ingress protocol with vacuum decay.
FDA lists dye penetration among example container-closure integrity tests in its stability guidance.

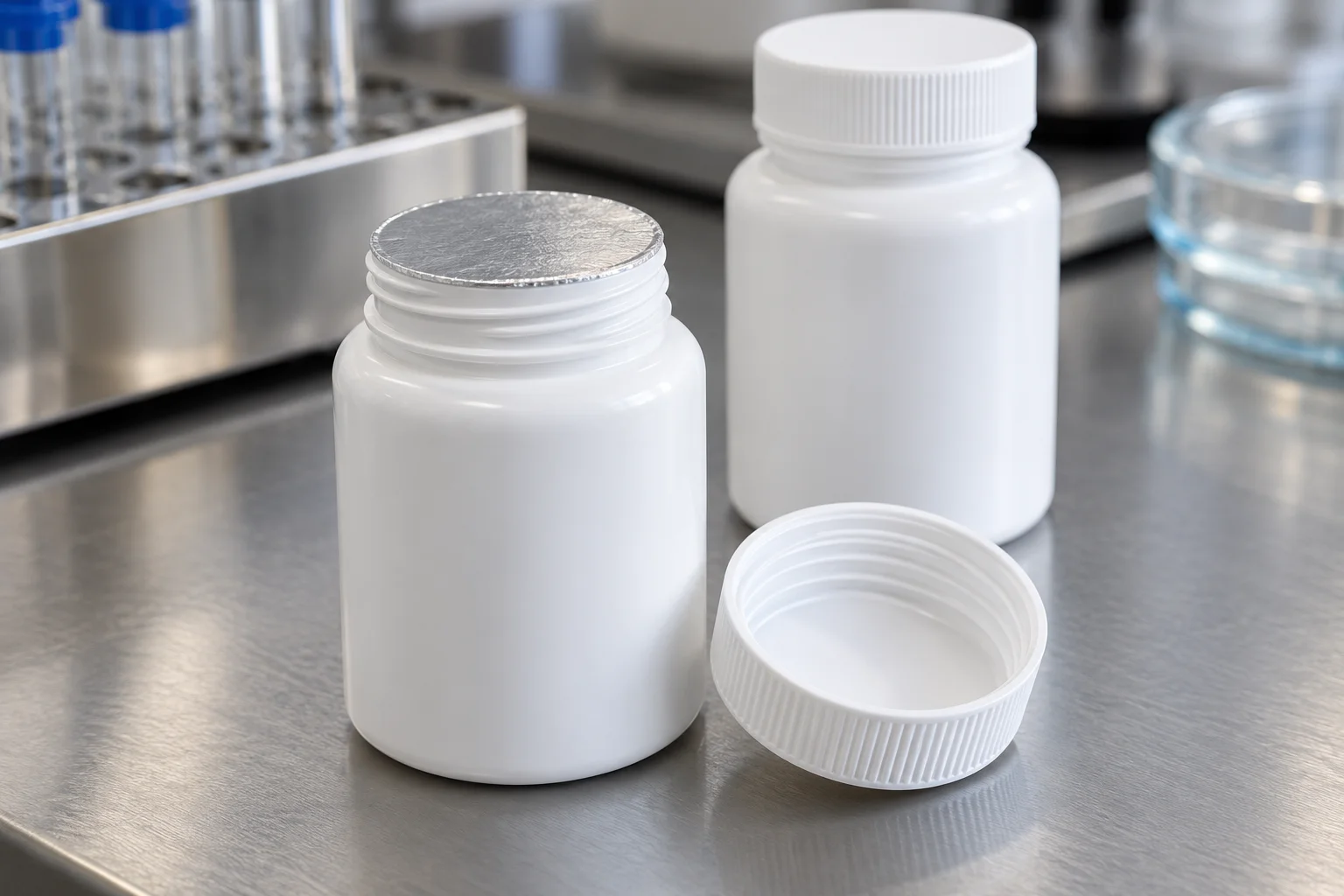

Evaluate a bottle leak tester against the bottle application
Sepha’s Multi-Q can perform non-destructive CCIT on induction-sealed and screw-cap bottles.
The described bottle application tests bottles containing tablets, capsules or caplets.
Sepha describes Multi-Q sensitivity as low as 5µm, depending on container type and contents.
Bonfiglioli states that a changed product format requires sensitivity verification against the new test specifications.
For a bottle evaluation, organize the discussion around the exact container, contents, fixture and test conditions. Keep the resulting sensitivity evidence with that application.

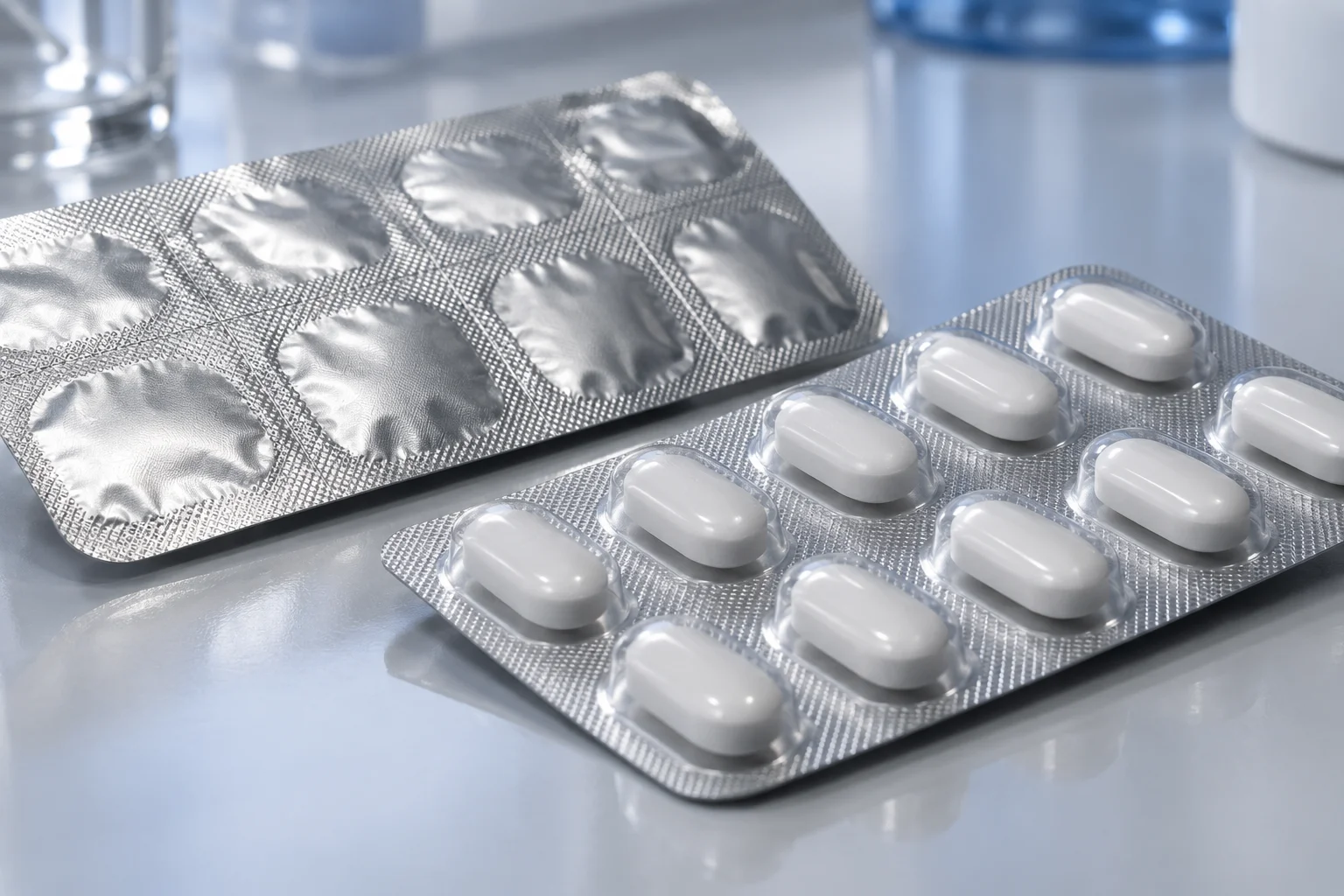

Identify the measurement behind a blister leak test
Sepha describes VisionScan 3D as a non-destructive, tool-less blister leak detector for all foil types.
The described blister detector uses vacuum deflection in line with ASTM F3169-16 (2024).
The described blister detector claims leak detection as low as 5μm, dependent on pack and material.
When specifying a blister leak test, name the measurement method alongside the detector and pack. Compare the application evidence before choosing a test.
Prepare the validation discussion
Use the following questions to organize the review:
- Which product and container-closure system will be evaluated?
- Which package design and test fixture will be used?
- Which evacuation, stabilization and measurement settings will be evaluated?
- How will non-leaking controls, leaking packages and simulated leaks be compared?
- Which format changes will trigger sensitivity verification?
Continue with the pharmaceutical packaging overview to place the integrity assessment alongside the rest of your packaging decisions.
